Stretcher Isolator
Providing isolation of a patient that requires ground transportation via ambulance. This unit consists of a flexible
transparent PVC envelope, and a purpose built air supply system.
Want to find out more?
Download our Stretcher Isolator fact sheet here.
Contact Us | Privacy Policy | Site Map
Get in touch
+44 (0) 77 3454 9022
Unit 4 Dolphin Park
Ardglen Road
Whitchurch
United Kingdom
RG28 7BB
© PCS Isolators
Air is filtered in via two battery
powered HEPA filters situated at the
head of the unit. This air is then
expelled at the foot via a similar
battery powered system.
Within the envelope, negative air
pressure is maintained relevant to
the ambient pressure by manual
operation of the flow control valve.
This prevents leaks of
contaminated air should a rupture
occur in the envelope.
The Stretcher Isolator is docking
compatible with both the Bed
Isolator and Aircraft Transport
Isolator allowing for seamless and
secure transfer between all three
isolation units.

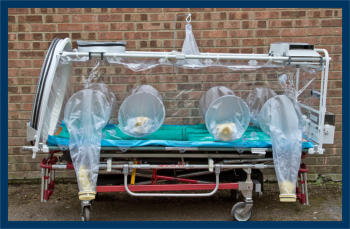

The envelope is suspended on a
steel frame which can be used on a
standard ambulance trolley.
Patients can be accessed via gloved
sleeves, access for drips and other
medical equipment is also
provided.
Stretcher Isolator
Providing isolation of a patient that
requires ground transportation via
ambulance. This unit consists of a
flexible transparent PVC envelope, and
a purpose built air supply system.
